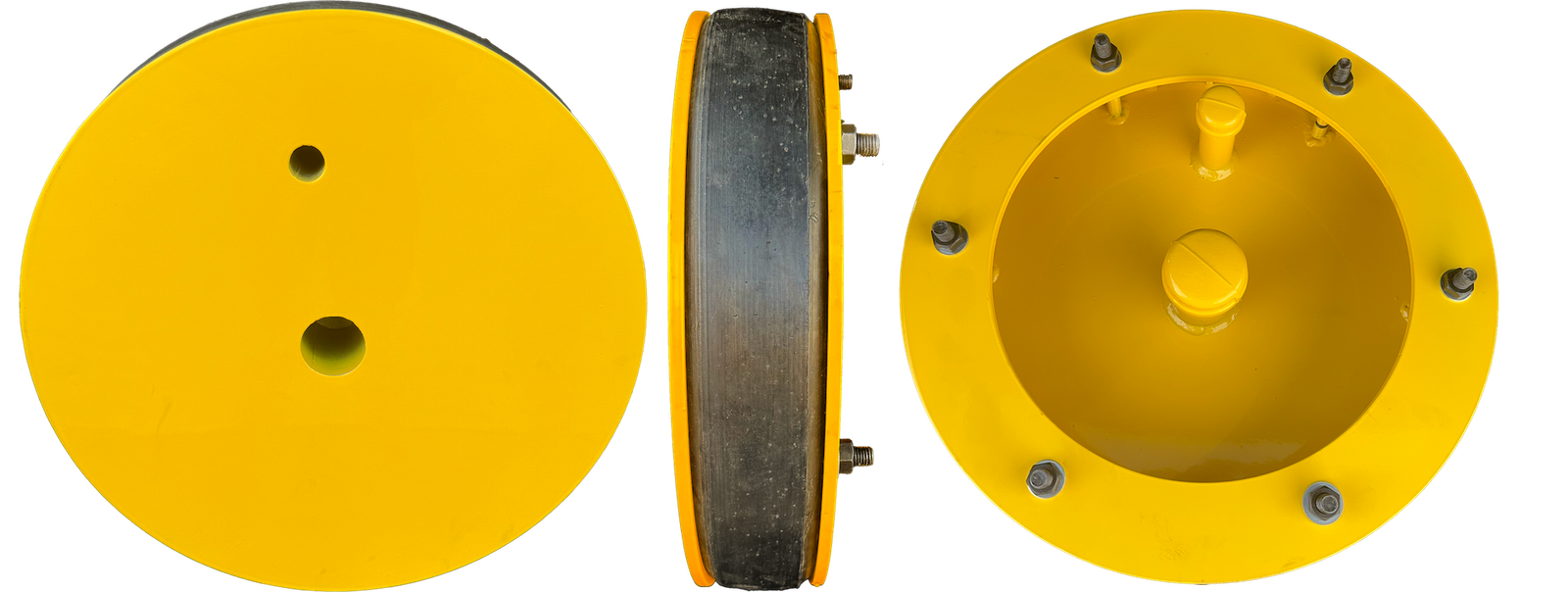

Mechanical multi lock single size pipe plug
with high test pressure

Part Number Min. Ø {mm} Max. Ø {mm} Back Pressure {Bar} By-Bass Ø { inch } Approximate ​Weight {KG}
150 130 160 6 1/2" + 1/2" 3.60
200 180 210 6 1/2" + 3/4" 6.00
200 190 220 6 1/2" + 3/4" 6.40
250 240 270 6
 1/2" + 3/4" 8.20
300 280 310 6 1" + 2" 10.20
300 290
 320 6 1" + 2" 10.40
350 330 360 6 1" + 2" 12.20
400 380 410 6 1" + 2" 14.80
400 390 420 6 1" + 2" 15.20
450 430 460 6 1" + 2" 17.40
500 480 510 6 1" + 2" 20.50
500 490 520 6 1" + 2" 21.00
600 580 610 6 1" + 2" 27.80
600 590 620 6 1" + 2" 28.60
700 680 710 6 1" + 2" 35.60
700 690 720 6 1" + 2" 36.80
800 780 810 6 1" + 2" 47.30
900 880 910 6 1" + 2" 57.50
1000 980 1010 6 1" + 2" 67.80

Coming Soon.....
