Test Plugs

Our test plugs provide reliable sealing and testing solutions for plumbing projects, ensuring efficiency and safety in waterworks applications across various environments and conditions.

Working Pressure {2.5 Bar}
Back Pressure {1 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} Weight {KG}
013570 32 70
 200 0.20
0150100 45 100 280 0.40
0170150 65 150 320 0.60
01100200 85 200 500 1.00
01150300 135 300 500 2.00
01200400 182
 400 600 3.40
01200500 182 500 750 4.20
01300600 280 600 800 8.10
01375750 355 750 1000 13.70
01400800 355 800 1000 13.70
01500800 480 800 1050 24.90
015001000 480 1000 1050 24.90
015001200 480 1200 1400 33.20
015001400 480 1400 1900 52.50
016001200 580 1200 1250 36.30
016001600 580 1600 1900 48.50
018001200 780 1200 1600 55.00
018001600 780 1600 2000 69.00
018002000 780 2000 2400 98.00
018002200 780 2200 3200 129.00
0112002400 1180 2400 3000 190.00
0112002800 1180 2800 4000 248.00
0118003600 1780 3600 4000 330.00
0118004200 1780 4200 6000 500.00

Coming Soon.....

Working Pressure {2.5 Bar}
Back Pressure {1 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} BY-PASS Ø {inch} Weight {KG}
023570 32 70 200 M6 0.40
02501001 45 100 280 1/4'' 0.90
02501002 45 100 280 2X1/8'' 1.20
02701501 65 150 320 1X2'' 1.40
02701502 65 150 320 2X1/4'' 1.60
021002001 85
 200 500 1'' 2.10
021002002 85 200 500 2X1/2'' 2.30
021503001 135 300 500 2'' 7.20
021503002 135 300 500 1''X1/2'' 7.50
022004001 182 400 600 2'' 8.30
022004002 182 400 600 2X1'' 8.60
022005001 182 500 750 2'' 9.60
022005002 182 500 750 2X1'' 10.00
023006001 280 600 800 2'' 19.00
023006002 280 600 800 2X2'' 20.00
023757501 355 750 1000 2'' 32.00
023757502 355 750 1000 2X2'' 35.00
024008001 355 800 1000 2'' 32.00
024008002 355 800 1000 2X2'' 35.00
025008001 480 800 1050 2'' 38.00
025008002 480 800 1050 2X2'' 42.00
0250010001 480 1000 1050 2'' 38.00
0250010002 480 1000 1050 2X2'' 42.00
0250012001 480 1200 1400 2'' 50.00
0250012002 480 1200 1400 2X2'' 56.00
0250014001 480 1400 1900 2'' 70.00
0250014002 480 1400 1900 2X2'' 75.00
0260012001 580 1200 1250 2'' 65.00
0260012002 580 1200 1250 2X2'' 70.00
0260016001 580 1600 1900 2'' 99.00
0260016002 580 1600 1900 2X2'' 106.00
0280012001 780 1200 1600 2'' 112.00
0280012002 780 1200 1600 2X2'' 120.00
0280016001 780 1600 2000 2'' 140.00
0280016002 780 1600 2000 2X2'' 150.00
0280020001 780 2000 2400 2'' 183.00
0280020002 780 2000 2400 2X2'' 195.00
0280022001 780 2200 3200 2'' 244.00
0280022002 780 2200 3200 2X2'' 254.00
02120024001 1180 2400 3000 2'' 350.00
02120024002 1180 2400 3000 2X2'' 375.00
02120028001 1180 2800 4000 2'' 500.00
02120028002 1180 2800 4000 2X2'' 530.00
02180036001 1780 3600 4000 2'' 630.00
02180036002 1780 3600 4000 2X2'' 680.00
02180042001 1780 4200 6000 2'' 945.00
02180042002 1780 4200 6000 2X2'' 990.00

Coming Soon.....

Working Pressure {2.5 Bar}
Back Pressure {1 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} Weight {KG}
0320 18 20 100 0.10
0325 23 25 100 0.12
0330 28 30 100 0.15
0340 38 40 100 0.15
0350 45 50 100 0.25
0360 58
 60 100 0.35
0370 68 70 100 0.45
03100 85 100 150 0.60
03150 135 150 150 1.10
03200 182 200 250 1.60
03250 182 250 300 2.20
03300 280 300 300 3.50
03400 380 400 400 7.50
03500 480 500 450 10.50
03600 580 600 450 15.00
03800 780 800 1200 41.00
031200 1180 1200 1500 78.00
031800 1780 1800 1500 118.00
032030 18 30 100 0.10
033040 28 40 100 0.12
033050 28 50 100 0.15
034050 38 50 100 0.15
035075 45 75 100 0.25
0370100 65 100 150 0.35
03100150 85 150 150 0.45
03150200 135 200 200 0.60
03200250 182 250 250 1.10
03250300 235 300 300 3.30
03300350 280 350 300 3.50
03400450 380 450 450 4.40
03500550 480 550 450 5.50
03600650 580 650 450 18.00
038001000 780 1000 1200 40.00
0312001400 1180 1400 1600 78.00
0318002000 1780 2000 1500 118.00

Coming Soon.....

Working Pressure {3 Bar}
Back Pressure {0.5 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} Weight {KG}
0550100 45 100
 150 0.30
0570150 65 150 200 0.40
05100200 85 200 200 1.00
05150300 135 300 300 2.00
05200400 182 400 400 3.00
05300600 280
 600 600 6.00

Coming Soon.....

Working Pressure {2.5 Bar}
Back Pressure {1 Bar}

Part Number insert Ø {mm} Min. Ø {mm} Max. Ø {mm} Length {mm} Weight {KG}
075075 35 45 75
 220 0.50
0770100 50 65 100 260 0.60
07100150 70 85 150 300 1.30
07150200 100 135 200 434 2.30
07200300 120 182 300 640 3.50
07300400 200 280
 400 1110 6.60
0750100 35 45 100 350 0.60
0770150 50 65 150 380 0.80
07100200 70 85 200 600 1.30
07150300 100 130 300 634 2.70
07200400 120 182 400 840 4.60
07300600 200 280 600 1310 7.80
07375750 250 335 750 1566 14.40
07400800 250 335 800 1566 14.50
07500800 300 480 800 1520 25.80
075001000 300 480 1000 1520 25.80

Coming Soon.....

Working Pressure {6 Bar}
Back Pressure {3 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} Weight {KG}
103550 32 50
 200 0.20
105070 45 70 280 4.00
1070100 65 100 320 6.00
10100150 85 150 500 1.00
10150200 135 200 500 2.20
10200300 182
 300 600 3.40
10300400 280 400 800 8.10
10375500 355 500 1000 13,70
10500600 480 600 1050 24.90
10600700 580 700 1250 36.30
108001000 780 1000 1200 55.00
1012001400 1180 1400 1600 115.00
1018002000 1780 2000 2000 180.00

Working Pressure {12 Bar}
Back Pressure {6 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} Weight {KG}
1050 45 50
 280 0.40
1070 65 70 320 6.00
10100 85 100 500 1.00
10150 135 150 500 2.20
10200 182 200 600 3.40
10300 280
 300 800 8.10
10375 355 375 1000 13.70
10500 480 500 1050 24.90
10600 580 600 1250 36.30
10800 780 800 1200 55.00
101200 1180 1200 1600 115.00
101800 1780 1800 2000 180.00

Coming Soon.....

Working Pressure {6 Bar}
Back Pressure {3 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} BY-PASS Ø {inch} Weight {KG}
1150701 45 70 280 1/4'' 0.90
1150702 45 70 280 2X1/8'' 1.20
11701001 65 100 320 1/2'' 1.40
11701002 65 100 320 2X1/4'' 1.60
111001501 85 150 500 1'' 2.10
111001502 85
 150 500 2X1/2'' 2.30
111502001 135 200 500 2'' 7.20
111502002 135 200 500 1'' + 1/2'' 7.50
112003001 182 300 600 2'' 8.30
112003002 182 300 600 2X1'' 8.60
113004001 280 400 800 2'' 19.00
113004002 280 400 800 2X1'' 20.00
113755001 355 500 1000 2'' 32.00
113755002 355 500 1000 2X1'' 35.00
115006001 480 600 1050 2'' 38.00
115006002 480 600 1050 2X1'' 42.00
116007001 580 700 1250 2'' 65.00
116007002 580 700 1250 2X1'' 70.00
1180010001 780 1000 1200 2'' 90.00
1180010002 780 1000 1200 2X1'' 100.00
11120014001 1180 1400 1600 2'' 200.00
11120014002 1180 1400 1600 2X1'' 225.00
11180020001 1780 2000 2000 2'' 300.00
11180020002 1780 2000 2000 2X1'' 360.00

Working Pressure {12 Bar}
Back Pressure {6 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} BY-PASS Ø {inch} Weight {KG}
11501 45 50 280 1/4'' 0.90
11502 45 50 280 2X1/8'' 1.20
11701 65 70 320 1/2'' 1.40
11702 65 70 320 2X1/4'' 1.60
111001 85 100 500 1'' 2.10
11102 85
 100 500 2X1/2'' 2.30
111501 135 150 500 2'' 7.20
111502 135 150 500 1'' + 1/2'' 7.50
112001 182 200 600 2'' 8.30
112002 182 200 600 2X1'' 8.60
113001 280 300 800 2'' 19.00
113002 280 300 800 2X1'' 20.00
113751 355 375 1000 2'' 32.00
113752 355 375 1000 2X1'' 35.00
115001 480 500 1050 2'' 38.00
115002 480 500 1050 2X1'' 42.00
116001 580 600 1250 2'' 65.00
116002 580 600 1250 2X1'' 70.00
118001 780 800 1200 2'' 90.00
118002 780 800 1200 2X1'' 100.00
1112001 1180 1200 1600 2'' 200.00
1112002 1180 1200 1600 2X1'' 225.00
1118001 1780 1800 2000 2'' 300.00
1118002 1780 1800 2000 2X1'' 360.00

Coming Soon.....

Working Pressure {1.5 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} BY-PASS Ø {inch} Weight {KG}
12100200 92 200 400 2'' 2.50
12150300 140 300 520 4'' 5.80
1200500 185 500 680 4'' 12.10
12300600 280 500 680 4'' 18.00
12300750 280 750 750 4'' 25.00
12500800 440
 800 680 6'' 38.00
125001200 400 1200 980 8'' 47.00

Coming Soon.....

Working Pressure {1.5 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} BY-PASS Ø {inch} Weight {KG}
13300400 280 400 240 2X1/4'' 3.80
13400500 380 550 240 2X1/4'' 5.20
13500600 480 600 240 2X1/4'' 7.80
13600700 580 700 240 2X1/4'' 9.60
13700800 680 800 240 2X1/4'' 11.00
13800900 780
 900 240 2X1/4'' 13.50
139001000 880 1000 240 2X1/4'' 17.00
1310001100 980 1100 240 2X1/4'' 21.00

Coming Soon.....

Working Pressure {1.5 Bar}

Part Number Min. Ø {mm} Max. Ø {mm} Length {mm} BY-PASS Ø {inch} Weight {KG}
145005501 480 550 240 2X1/4'' 10.50
145005502 480 550 240 2'' 11.00
145006501 580 650 240 2X1/4'' 7.80
146006502 580 650 240 2'' 9.60
148008501 780 850 240 2X1/4'' 11.00
148008502 780
 850 240 2'' 13.50
14100010501 980 1050 240 2X1/4'' 17.00
14100010502 980 1050 240 2'' 21.00

Coming Soon.....

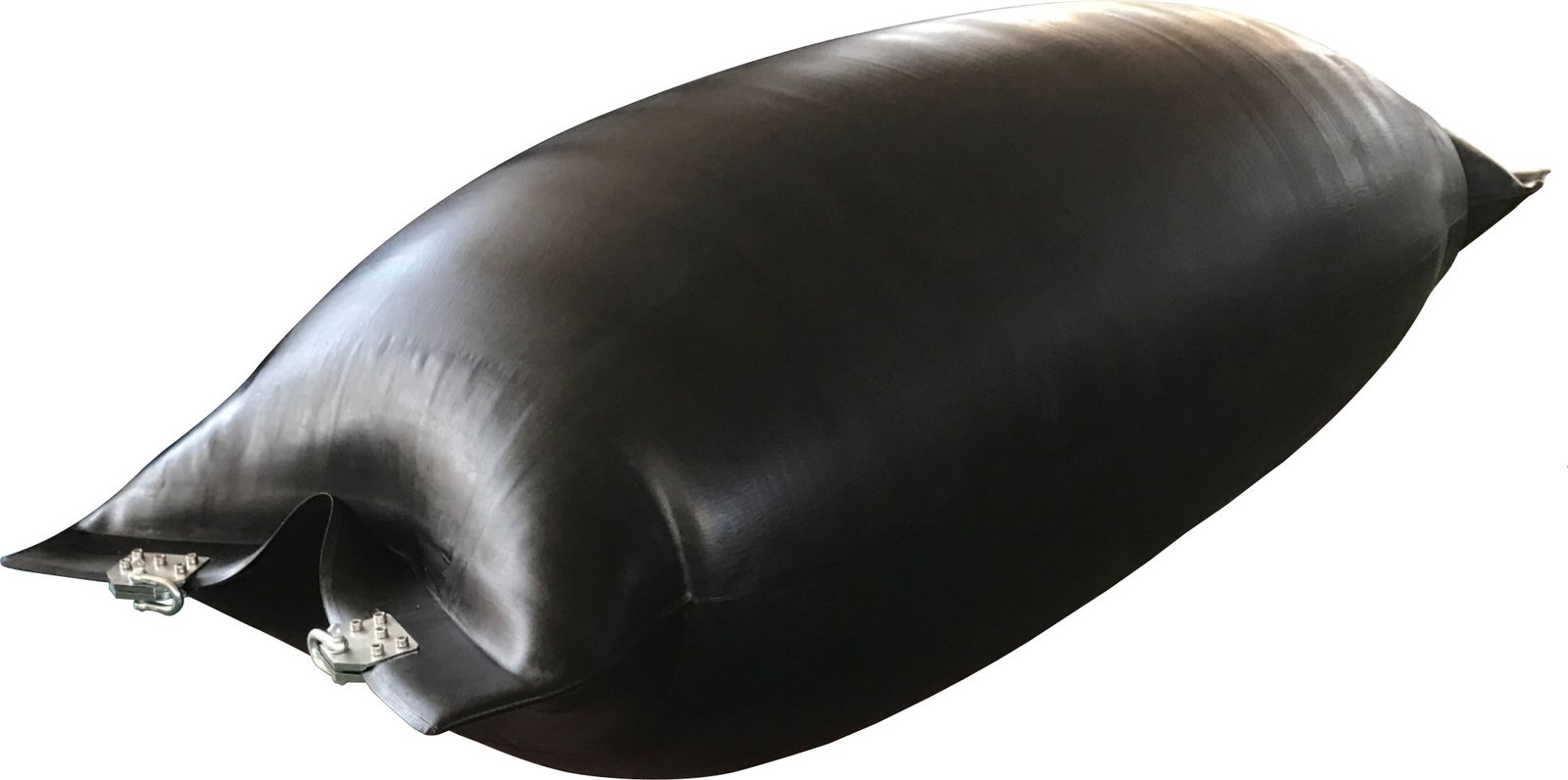

Type of Quick Inflation​ 1/4" quick coup.+ 1" Storz
Repair Length at Max.Dia.(1000 mm)

Part Number Min. Ø {mm} Max. Ø {mm} Width {mm} Length {mm} Required Inflation Weight {KG}
08200400-25 200 400 210 2200 1 12
08300600-25 300 600 400 2500 1 12.5
08375600-25 375 600 460 2500 1 22
08600900-25 600 900 920 2500 1
 36
086001000-25 600 1000 920 2900 1 40
088001200-25 800
 1200 1225 2900 1 61
0810001400-25 1000 1400 1500 3000 0.7 65
0812001600-25 1200 1600 1650 3400 0.7 85
0814001800-25 1400 1800 1900 3400 0.7 95
0815002000-28 1500 2000 1900 4200 0.5 119
0818002200-28 1800 2200 1900 5100 0.5 144
0822002400-28 2200 2400 2400 5100 0.5 172

Coming Soon.....

Type of Quick Inflation​ 1/4" quick coup.+ 1" Storz
Repair Length at Max.Dia.(1000 mm)

Part Number Min. Ø {mm} Max. Ø {mm} Width {mm} Length {mm} Required Inflation Flowthrough Hose Diameter {mm} Weight {KG}
09200400-22 200 400 210 2200 1 60 12
09300600-25 300 600 400 2500 1 90 12.5
09375600-25 375 600 460 2500 1 90 31
09600900-25 600 900 920 2500 1
 135 50
096001000-29 600 1000 920 2900 1 135 54
098001200-29 800
 1200 1225 2900 1 290 81
0910001400-30 1000 1400 1500 3000 0.7 290 85
0912001600-34 1200 1600 1650 3400 0.7 290 105
0914001800-34 1400 1800 1900 3400 0.7 290 115
0915002000-42 1500 2000 1900 4200 0.5 290 139
0918002200-51 1800 2200 1900 5100 0.5 290 164
0922002400-51 2200 2400 2400 5100 0.5 290 184

Coming Soon.....
